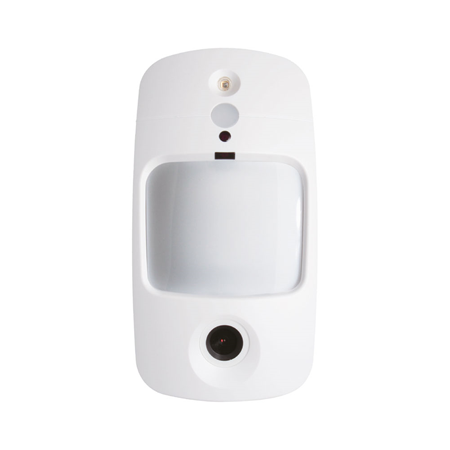

720P Indoor PIRCAM Detector – Grade 3

Specifications

• Detection range: 12 meters, 90°
• Advanced dynamic speed adjustment algorithms to maintain image transmission speed based on signal quality
• Installation height: 2.3 ~ 2.5 meters
• Pet immunity up to 25 kg, remotely manageable
• HD CMOS sensor
• Horizontal field of view: 106°

     Three alarm image processing options:

• One HD color alarm image (1280×720)
• Three VGA color alarm images (640×480)
• Six QVGA color alarm images (320×240)
• On-demand image delivery
• Anti-masking function detects any attempt to blind the detector
• Night illumination capability via infrared light, up to 10 meters range
• Constant supervision signals via V-MAX BUS
• Tamper protection
• Suitable for security and home automation
• Communication via V-MAX BUS
• Power supply via BUS
• Operating temperature: -10°C ~ +45°C
• Relative humidity up to 85% (non-condensing)
• Dimensions: 70 (W) × 135.5 (H) × 46.2 mm
• EN50131 Grade 3 certified
